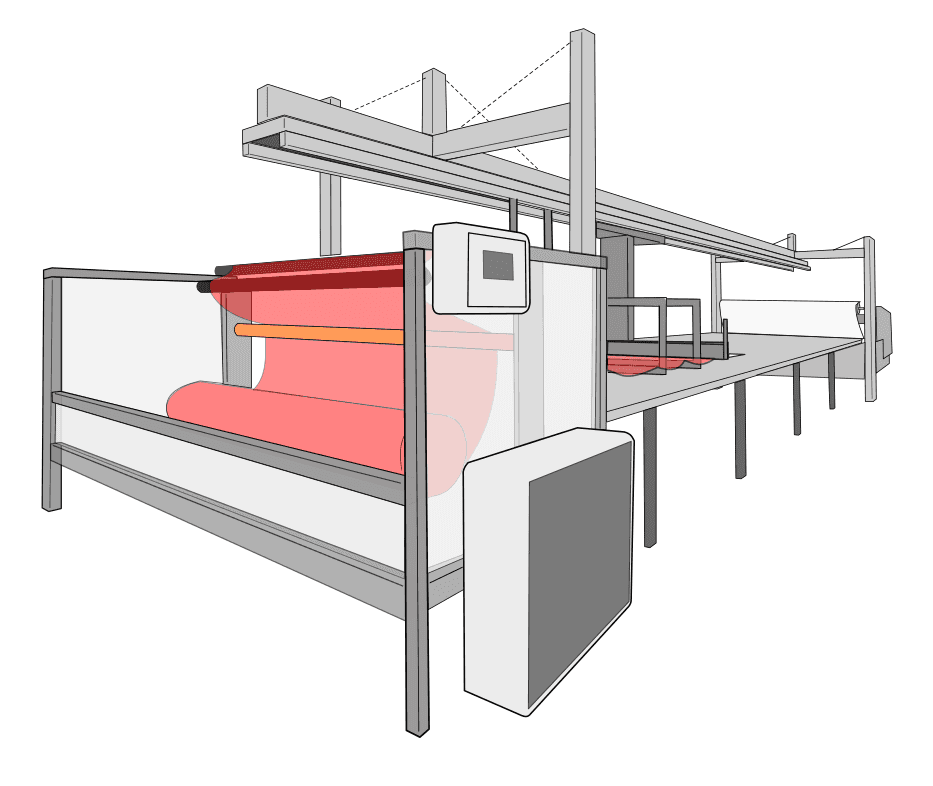

The textile handling concept is based on the principle of a telescopic conveyor that moves suspended beneath its track above the laying table.
The textile handling concept is based on the principle of a telescopic conveyor that moves suspended beneath its track above the laying table.

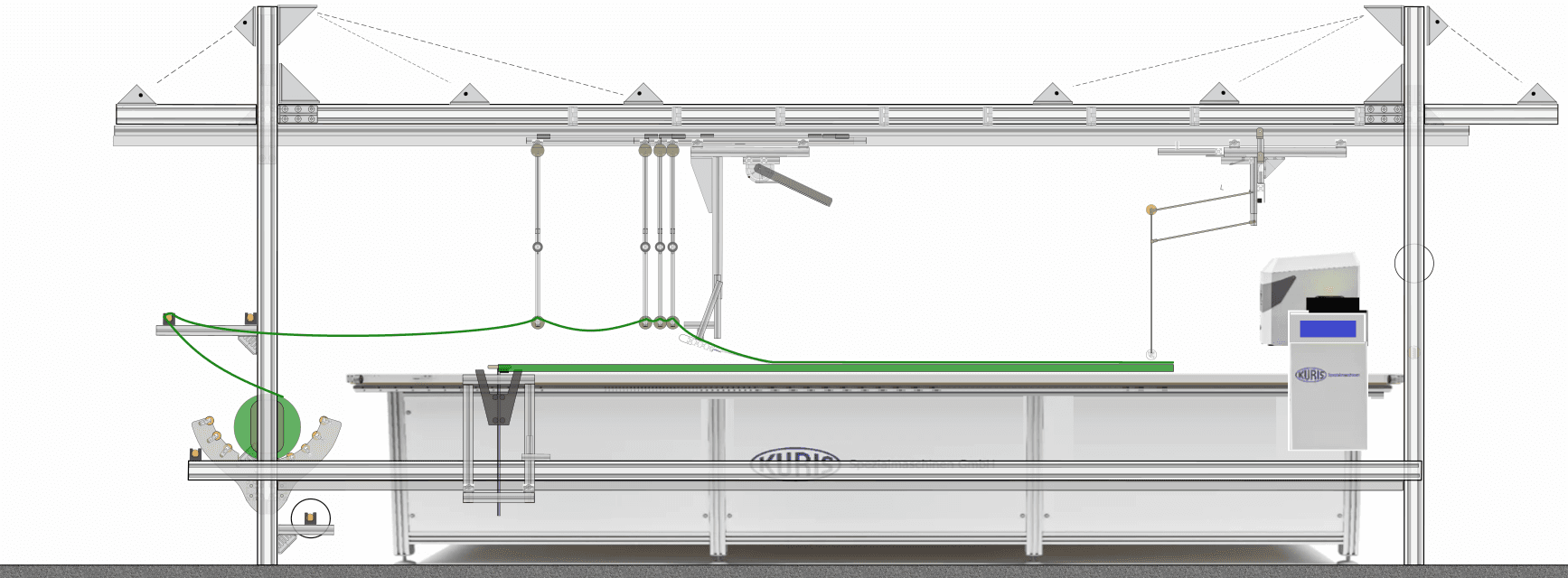

By moving forward, the telescopic conveyor transports the end of the fabric from a roll stored in a stationary feeder to the required position without contacting the laid stack.
By moving forward, the telescopic conveyor transports the end of the fabric from a roll stored in a stationary feeder to the required position without contacting the laid stack.
When the telescopic
conveyor moves backward, it lays the textile onto the stack all the way to its beginning, where the layer is cut.
When the telescopic
conveyor moves backward, it lays the textile onto the stack all the way to its beginning, where the layer is cut.
2n1 / roll to ply
MSD 2n1

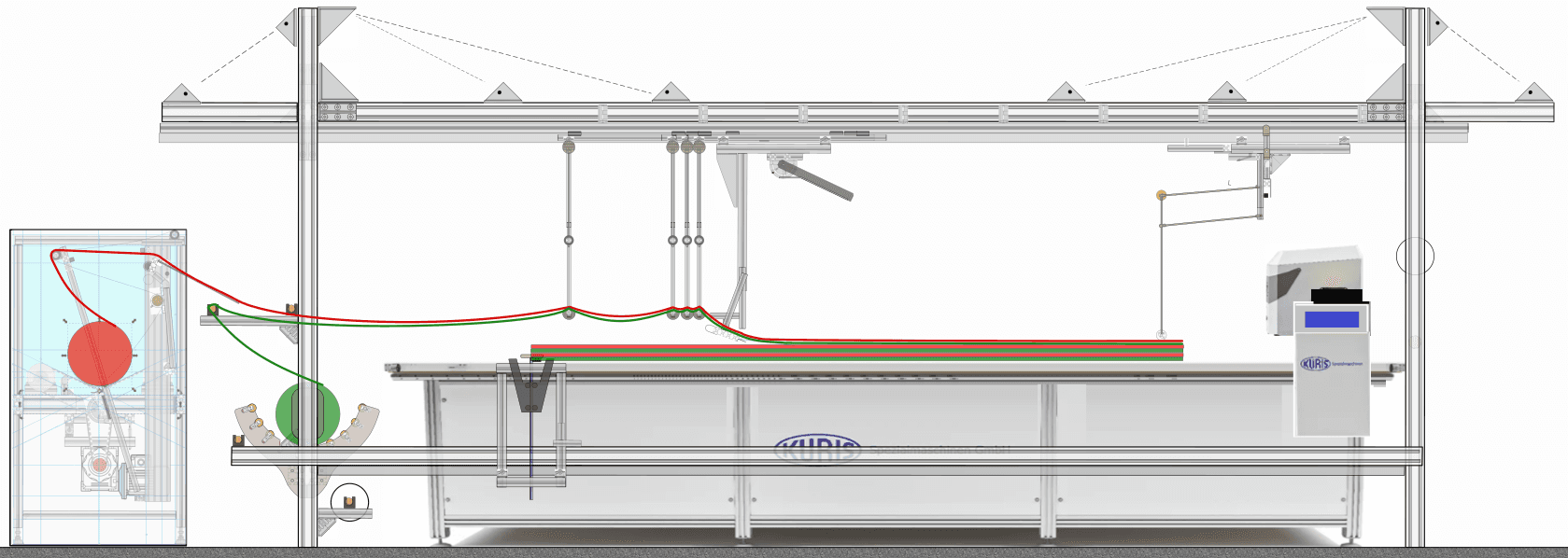

The device is equipped with both a manual and an automatic textile feeder located in front of the laying table.

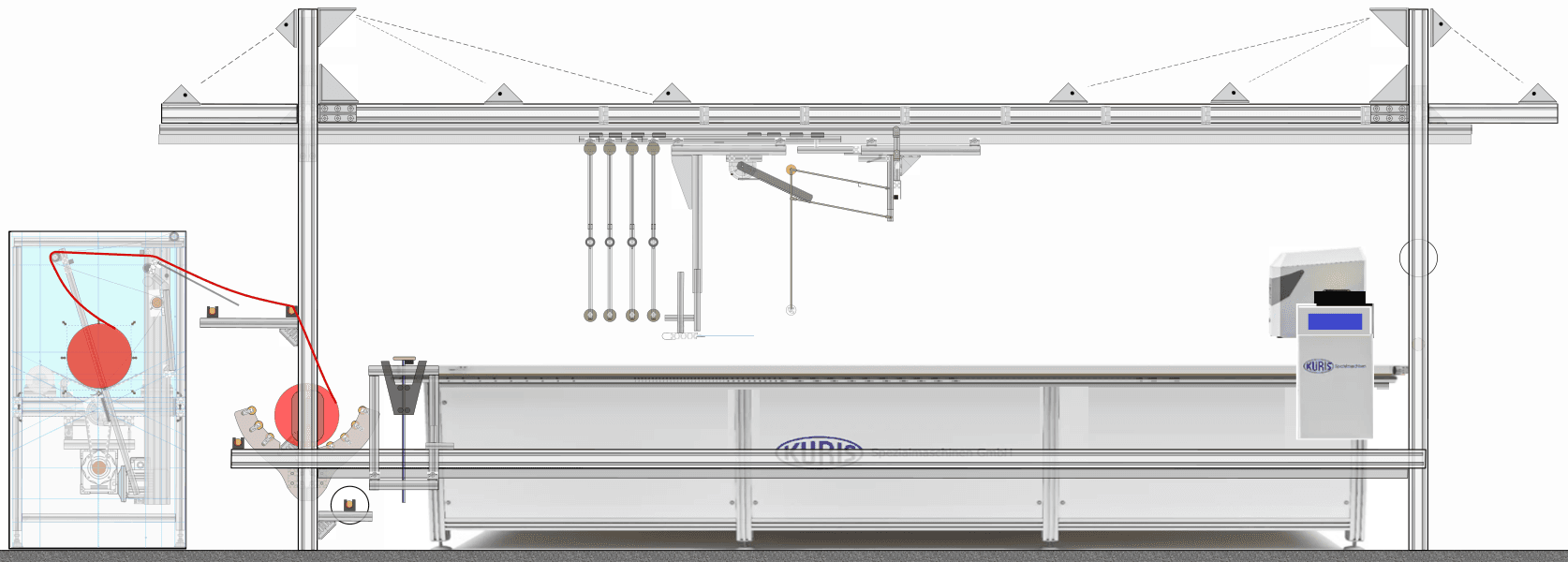

This assembly allows not only the simultaneous laying of two textiles, but also the rewinding of textile from roll to roll for the purpose of adjustment, inspection, or length measurement.
MSD adaptibility

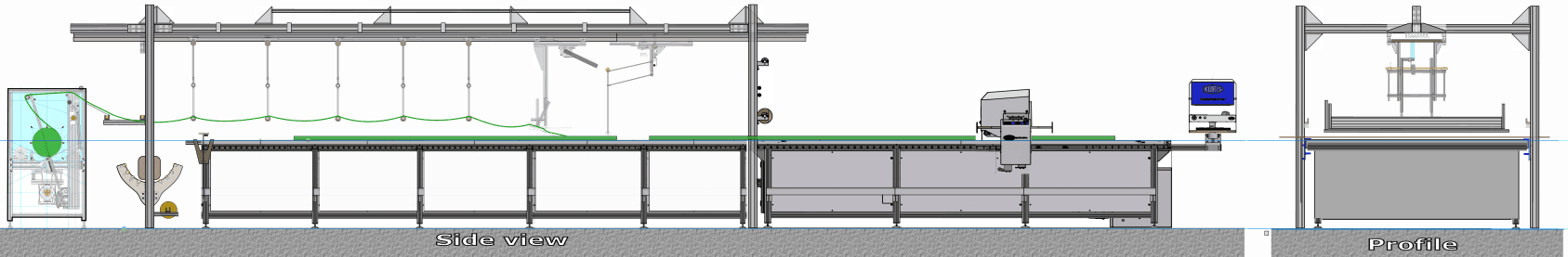

The device can be supplied in manual, semi-automatic, or fully automatic versions, and as the only device on the market, it is capable of laying textile directly onto the cutting surface of a CNC cutter.
Both automatic versions include a 2-in-1 function.
2 x roll to ply
roll to roll
manual
MSD 2in1
The MSD 2in1 Multipurpose Spreading Device is designed to make fabric handling fast, accurate, and effortless for a single operator. It combines two essential processes: roll-to-ply layingandroll-to-roll rewinding in one compact, efficient machine.
MSD performance
Manual
Manual
Semi-automatic
Semi-automatic
Automatic
Automatic
Max. textile width
175 cm
175 cm
180 / 220 cm
Max. textile diameter
40 cm
40 cm
60 cm
Max. textile weight
60 kg
60 kg
80 / 100 kg
Max. lay length
6.8 m
6.8 m
10 m
Max. lay height
90 mm
90 mm
150 mm
Laying speed
28 m / min
35 m / min
100 m / min
Rewinding speed
-
35 m / min
100 m / min
Consumption measurement
No
Yes
Yes
Roll-to-roll function
No
Yes
Yes
Laying / laying table
Yes
Yes
Yes
Laying / CNC cutter
Yes
Yes
Yes
Comparative Advantage
Comparative Advantage
Compared to manual laying by 2 workers, MSD 2in1 reduces labor costs, improves productivity, lowers fabric tension, offers accurate measurement, and accommodates a wider range of fabric types.
Unlike commonly automated systems, MSD 2in1 is more adaptable, easier to use, requires less lifting, and can integrate with existing worktables and crosscutters, delivering greater savings and versatility.
MSD 2in1 is ideal for businesses seeking efficiency without the cost or rigidity of large automated setups.
About Us
ProMSD is a family-built startup driven by engineering expertise and hands-on experience in textile operations. We combine practical know-how with smart design to create machines that make fabric handling faster, safer, and easier for every operator.
ProMSD began on a real production floor, where the challenges of fabric spreading were part of everyday work. Instead of accepting slow, labor-intensive processes, we set out to build a device that would truly make a difference. After countless trials and improvements, the MSD system emerged - tested and refined directly in production, proving its value from day one.
